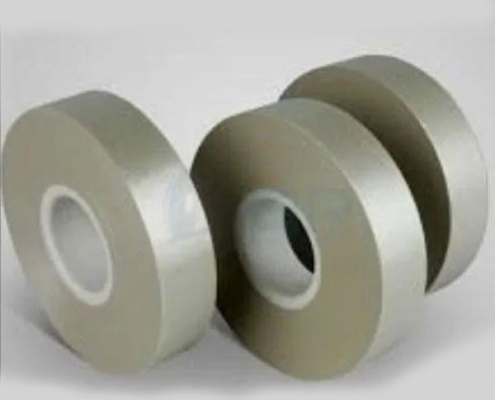

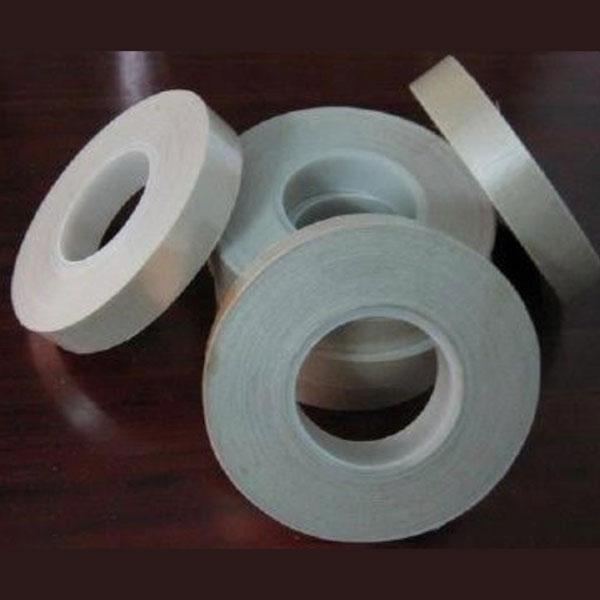

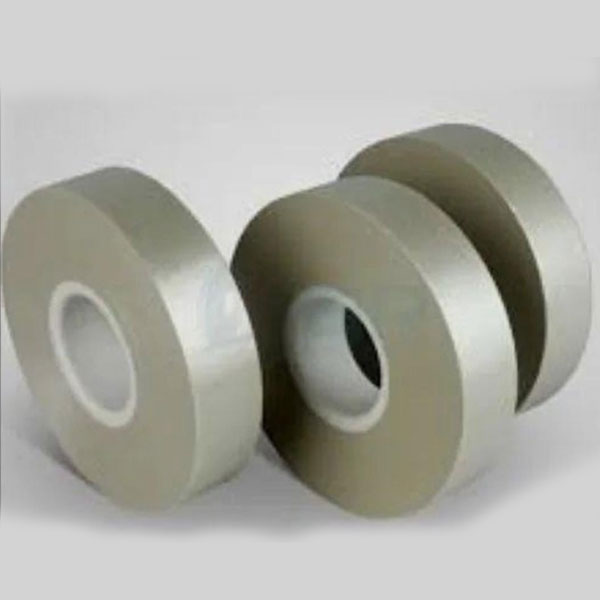

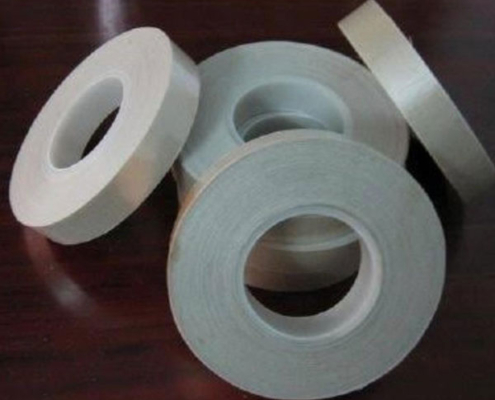

PGMP / GMP Tapes consist of high-grade reconstituted mica paper with E low alkali fibreglass fabric as a carrier material and laminated with electrical-grade polyester film on both or one side to make it a very flexible insulator.
These Tapes are characterized by high flexibility, high dielectric strength, and a uniform thickness. Due to low compression on application of pressure, these tapes leave no void or empty spaces between and among insulating layers.
PGMP / GMP Tapes are suitable for overhang insulation of HT coils of class F machines. They are also suitable as inter-turn and ground insulation for field, armature, and turbo generator coils and form the most important part of the insulation system of rotating machines.PGMP/ GMP Tapes are compatible with most commercially available insulating varnishes/resins.
PGMP / GMP tapes are available for F class insulation in 1000mmwide sheets (folium) in running length; in cut-to-size wrappers or in tapes in widths of 10mm and above in standard 50 mtr rolls. These tapes are supplied in standard 55mm ID plastic bobbins to facilitate hand and machine taping. Plastic spool ID 40mm, 50mm & 75mm are also available upon request.
Deviations in specifications, construction, sizes, or packing can be made upon customers’ requests.
PGMP / GMP Tapes exhibit a shelf life of 12 months from the date of manufacture when stored at 25 deg centigrade temperature and 50 % relative humidity
